A good fit when…
- A well-water installation sized to the pump curve
- Your required flow and total head suit this GS configuration
- Your casing, motor supply and controls match the selected assembly
Goulds

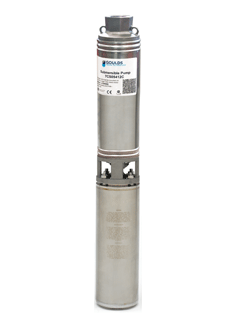

Goulds 10GS10412CL Submersible Well Pump – 230V, 3-Wire
$2,170.00
Free UPS Overnight Shipping
5-Year Manufacturer Warranty
Product highlights
Call or chat for our best price
Looking for a better price on this well pump? Call or chat with us before ordering. We can also help you confirm the right model for your installation.
Send your pump model, well diameter, pumping water level, required flow, pressure and electrical details.
Couldn't load pickup availability
Delivery and local pickup
Shipping service: Free UPS Overnight Shipping
Free shipping on orders over $99. This item will ship with Signature Requirement due to its value. We will give you a call before we ship your item to confirm your address.
Pickup: Tuesday–Friday, 9 AM–5 PM; Saturday, 10 AM–4 PM. Wait for your ready-for-pickup email before visiting.
1960 Mt Diablo Blvd, Walnut Creek, CA 94596
Questions or curbside pickup? Call 925-934-4582.Your local pump specialists
- Local pickup
- Ready-for-pickup email
- Expert pump advice
- Help before you order
- Walnut Creek store
- Serving the area since 1950
- Delivery help
- Call with timing questions
Check before ordering
- Confirm well casing inside diameter and installation clearance
- Check pumping water level, recovery rate and desired pressure
- Match motor horsepower, voltage and external control box
Plan your installation
- Plan submersible wire, drop pipe and connections
- Confirm the compatible control box and included components
- Ask about gauges, pressure switches and other installation accessories
Compare your options
Goulds 10GS10412CL Submersible Well Pump – 230V, 3-Wire
Currently viewing
$2,170.00
Specifications
Goulds 18GS15412CL Submersible Well Pump – 1-1/2 HP, 230V, 3-Wire
$2,584.00
Specifications
Goulds 10GS05412CL Submersible Well Pump – 1/2 HP, 230V, 3-Wire
$1,454.00
Specifications
Goulds 5GS05412CL Submersible Well Pump – 1/2 HP, 230V, 3-Wire
$1,901.00
Specifications
Compare specifications and pump curves before choosing. Maximum flow is not flow at maximum pressure.
Need help choosing?
Ask us about Goulds 10GS10412CL Submersible Well Pump – 230V, 3-Wire.
Chat with a pump specialistChoose with confidence
Real people. A real pump shop.
Get help from a local pump shop serving Contra Costa County since 1950.
1960 Mt Diablo Blvd, Walnut Creek, CA 94596
Call 925-934-4582 for pump selection and pickup availability.
Full product description
The Goulds 10GS10412CL submersible well pump is a GS Series option for supplying water from a well. Its 10 GPM series rating helps identify the configuration; actual flow depends on pumping depth, required pressure and pipe losses.
Choose the right well pump configuration
- Listed model: 10GS10412CL
- Series: 10GS (10 GPM nominal capacity)
- Power supply: 230V, 3-wire
A 3-wire installation needs a compatible control box. Ask us to confirm the motor, control box and included components before ordering.
Get help sizing your replacement
Share your existing pump model, well casing diameter, pumping water level, desired pressure and water demand. Electric Motor Service can help you select a suitable pump and accessories.
Need a different Goulds CS, GS or HS configuration? Chat with us or call 925-934-4582 to ask about ordering options.
Compare submersible well pumps or ask our Walnut Creek pump specialists about submersible wire, gauges, pressure switches and control boxes.
Existing product specifications and features
Goulds GS Series 4" Submersible Well Pump
This well pump is powered by a 4" CentriPro motor sized for installation in 4" diameter or larger water wells. Designed with a stainless steel construction for strength and corrosion resistance, this pump model has two cast-in safety line loops for installer convenience.
Includes:
- Submersible pump
- Centripro motor
Features
- Pump can be operated continuously without damage to the motor
- Units have left hand threads and are field serviceable with common tools and readily available repair parts
- Sand handling design
- Impellers, diffusers and bearing spiders are constructed of FDA compliant glass filled engineered composites. They are corrosion resistant and non-toxic
- Discharge head/check valve made of cast 303 stainless steel for strength and durability
- Built-in check valve is constructed of stainless steel and FDA compliant BUNA rubber for abrasion resistance and quiet operation
- Motor adapter made of cast 303 stainless steel for rigid, accurate alignment of pump and motor
- Easy access to motor mounting nuts using standard open end wrench
- Stainless steel casing is strong and corrosion resistant
- Hexagonal shaft design for positive impeller drive
- Proprietary engineered polymer bearing is strong and resistant to abrasion and wear
- Enclosed upper bearing is mounted in a durable Noryl bearing spider for excellent abrasion resistance
- Built-in surge arrestor is provided on single phase motors
- Stainless steel splined shaft
- Hermetically sealed windings
- NEMA mounting dimensions
- Replaceable motor lead assembly
- CSA certified
- UL 778 recognized
Please note that this 3-wire pump requires a control box (sold separately) for operation. Control Box Part Number CB10412
