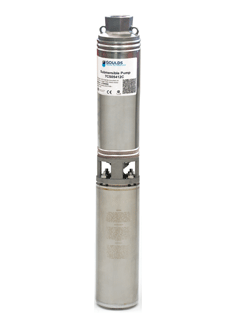

Goulds 18CS Pump + Motor
Goulds

Goulds 18CS Pump + Motor

SKU: 18CS07422C
Regular price $1,275.00 $0.00 Unit price per
Shipping calculated at checkout.

FEATURES

Powered for Continuous Operation: All ratings are within the working limits of the motor as recommended by the motor manufacturer. Pump can be operated continuously without damage to the motor.

Sand Handling Design: Our face clearance, floating impeller stack has proven itself for over 50 years as a superior sand handling, durable pump design.

FDA Compliant Non-Metallic Parts: Impellers, diffusers and bearing spiders are constructed of glass filled engineered composites. They are corrosion resistant and non-toxic.

Discharge Head: Cast 303 stainless steel for strength and durability. Two cast-in safety line loops for installer convenience.

Motor Adapter: Cast 303 stainless steel for rigid, accurate alignment of pump and motor. Easy access to motor mounting nuts using standard open end wrench.

Stainless Steel Casing: Polished stainless steel is strong and corrosion resistant.

Hex Shaft Design: Six sided shafts for positive impeller drive.

Engineered Polymer Bearings: The proprietary, engineered polymer bearing material is strong and resistant to abrasion and wear. The enclosed upper bearing is mounted in a durable Noryl® bearing spider for excellent abrasion resistance.

Check Valve: Screws into discharge head from the top, easily removed for drain-back systems or replacement without disassembling the pump. Spring loaded, o-ring poppet design for positive seal in all conditions.

Crimped Design: For strength, will not separate in the harshest conditions.



SPECIFICATIONS

CENTRIPRO 4 Inch NEMA MOTOR
  • Corrosion resistant stainless steel construction.
  • Built-in surge arrestor is provided on single phase motors through 5 HP.
  • Stainless steel splined shaft.
  • Hermetically sealed windings.
  • Replaceable motor lead assembly.
  • CSA certified.
  • UL 778 recognized.
  • NEMA mounting dimensions.
  • Control box is required with 3 wire single phase units.
  • Three phase units require a magnetic starter with three leg Class 10 overload protection.
