Goulds

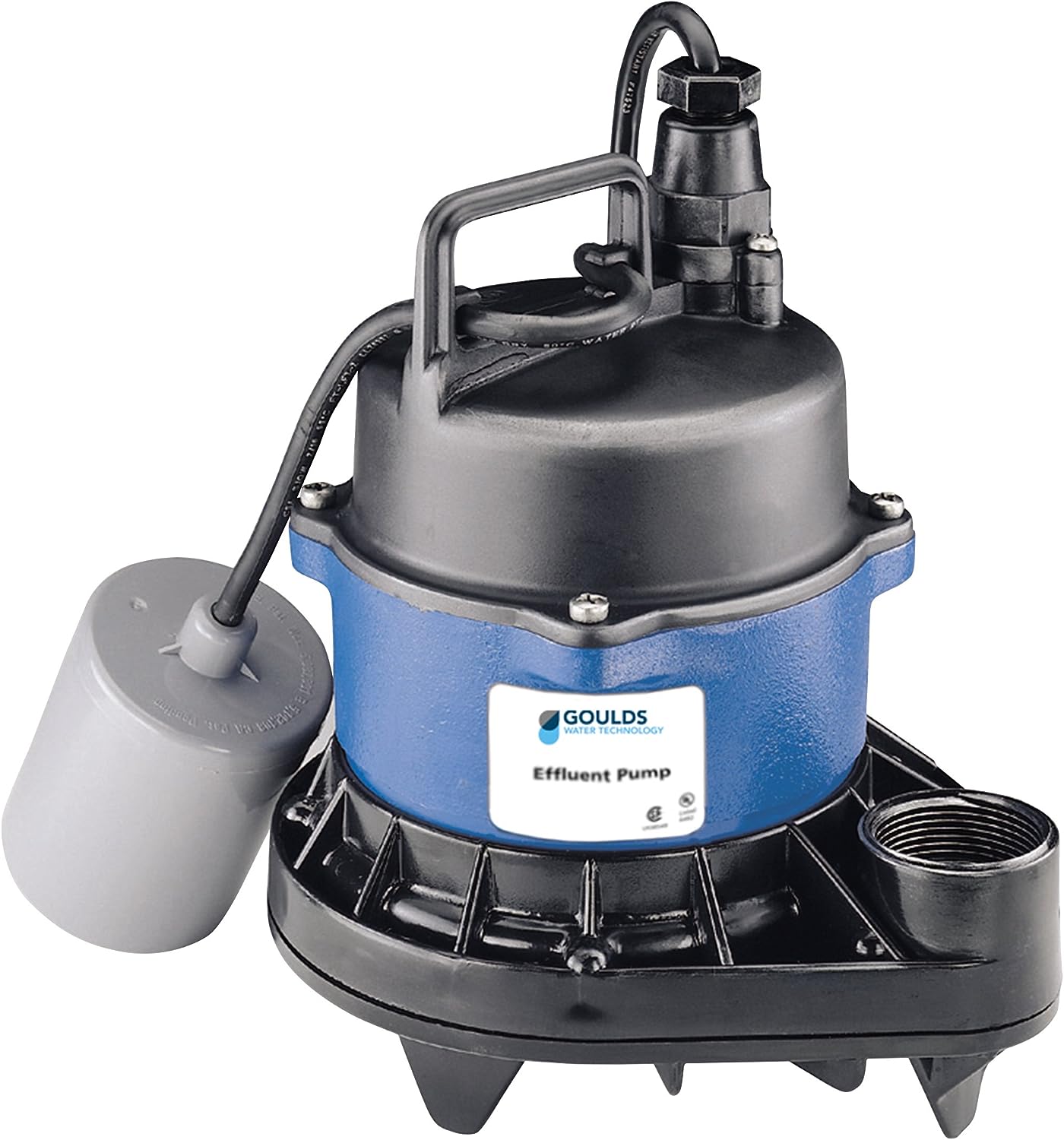

4/10HP 115V 55GPM Effluent Pump
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Product Description
Designed with rugged thermoplastic casing and base for superior strength and corrosion resistance, this pump is capable of handling up to 3/4" solids.
Features
- Thermoplastic semi-open design with pump out vanes for mechanical seal protection
- Cast iron motor housing for efficient heat transfer, strength, and durability
- Thermoplastic motor cover with integral handle and float switch attachment points
- Power cable is severe duty rated oil and water resistant
- Upper and lower heavy duty ball bearing construction
- Class B insulation motor
- 300 series stainless steel fasteners
- Capable of running dry without damage to components
Applications
- Effluent systems
- Homes/farms
- Heavy duty sump
- Water transfer
- Dewatering
Â
Brand | Goulds |
Mfg. Number | EP0411A |
Model Number | 3871 |
Series | EP04 |
Product Type | Submersible effluent pump |
Application | Effluent, dewatering |
Operation | Automatic |
Phase | 1 |
Horsepower | 4/10 HP |
Speed | 1550 rpm |
Voltage | 115 Volts |
Frequency | 60 Hz |
Minimum On Level | 12" |
Discharge Connection | 1-1/2" NPT |
Minimum Off Level | 6" |
Float Switch Style | Piggyback /Wide-Angle |
Impeller Material | Thermoplastic |
Pump Casing/Base | Thermoplastic |
Maximum Flow | 55 gpm |
Maximum Head | 24 ft |
Maximum Solids Handling | 3/4" |
Flow at 5 ft | 53 gpm |
Flow at 10 ft | 46 gpm |
Impeller Design | Semi-open with pump out vanes |
Flow at 15 ft | 36 gpm |
Flow at 20 ft | 21 gpm |
Minimum Basin Diameter | 15" |
Maximum Temperature (Intermittent) | 140°F |
Current | 12 Amps |
Minimum Circuit Breaker | 20 |
Motor Insulation | Class B |
Cord Length | 10 ft |
Thermal Protection | Yes |
Maximum Temperature (Continous) | 104°F |
