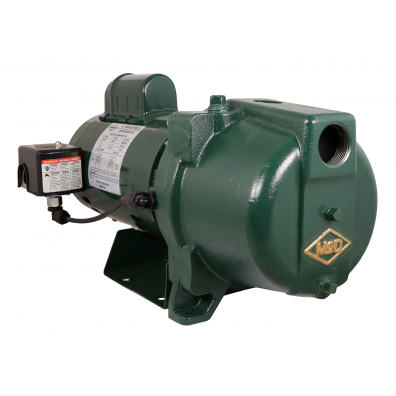

A.Y. McDonald 8310 E-Series Jet Pump 1.0 HP 115/230VSKU: 8310
Regular price $896.00
Shipping calculated at checkout.
Get water from point A to point B easier than ever with Ay McDonald's E-Series Jet Pump. Available 1/2, 3/4, 1 and 1-1/2 HP, this pump also contains a flow of up to 32 GPM. The E-Series 1-HP Jet Pump is designed with a 1-1/4" inlet and 1" outlet while allowing for an easy switch between 115V and 230V. Rely on the 304 stainless steel insert on the impeller and its reliable, robust and tested motor.
A.Y. McDonald E-Series 8310 Jet Pump Features
- 1.0" Outlet
- 1-1/4" Inlet
- Reliable, Robust and Tested Motor
- Easy to Switch between 115V & 230V
- 304 Stainless Steel Motor Shaft with Wrench Flat
- All Iron Pump Housing and Seal Plate
- 304 Stainless Steel Insert on Impeller
- Stainless Steel Wear Ring Between the Impeller and Diffuser
- Stainless Steel Bolt Hardware Connecting Pump to Motor
- DISCHARGE SIZE: 1.0"
- INLET SIZE: 1-1/4"
- MAXIMUM CAPACITY: 26 GPM
- MAXIMUM HEAD: 70 PSI
- IMPELLER MATERIAL: Plastic w/ 304 SS Insert
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 1.0 HP
- MOTOR TYPE: Nema J Motor 7/16" - 20 Threads
- VOLTAGE: 230/115V
