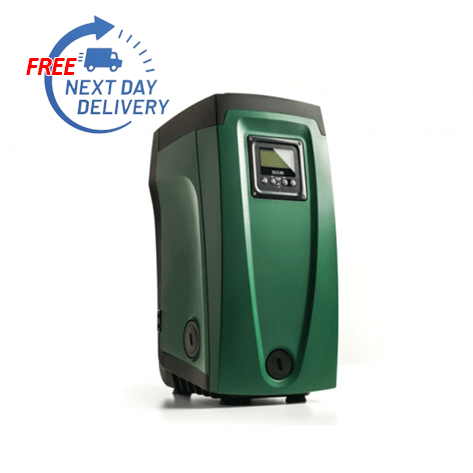

E.SYBOX 230V Booster Pump - up to 32GPM
E.SYBOX 230V Booster Pump - up to 32GPM
E.SYBOX 230V Booster Pump - up to 32GPM
DAB

E.SYBOX 230V Booster Pump - up to 32GPM

SKU: 60161182
Regular price $2,695.00 $0.00 Unit price per
Shipping calculated at checkout.

ESYBOX is an integrated electronic water pressure booster system for domestic and residential use.
The ESYBOX inverter system provides the comfort of constant water pressure, while saving energy too.

Suitable for use for potable water, in domestic plants for gardening and irrigation. Suitable for creating groups of up to 4 pumps.

ESYBOX requires no additional components for installation.

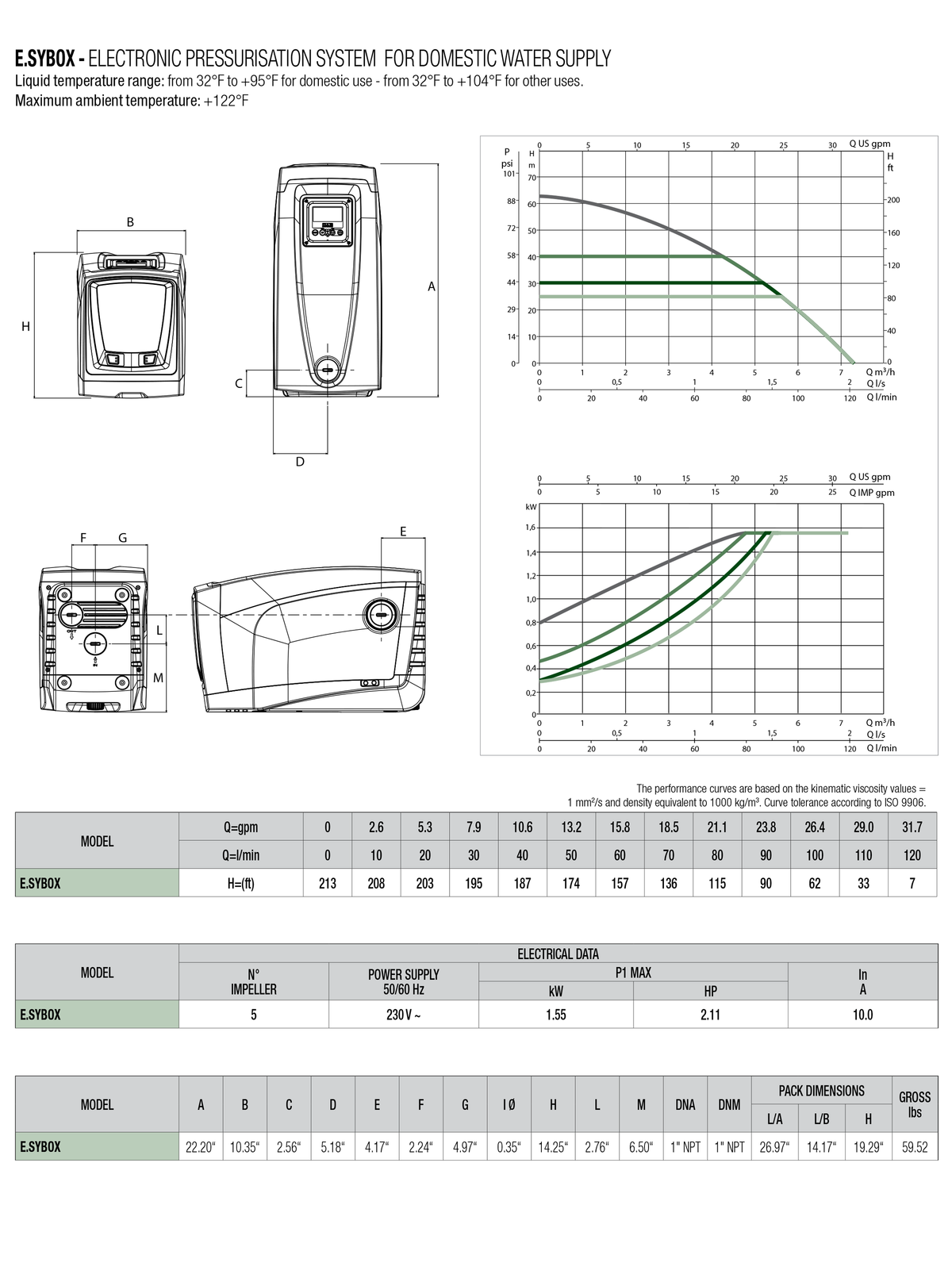

TECHNICAL DATA

  • Operating range: capacity up to 32 gpm; head up to 210 ft.
  • Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, un-crystallized and chemically neutral.
  • Liquid temperature range: from 32°F to +95°F for domestic use or from 32°F to +104°C for other uses
  • Maximum suction depth: 26 ft
  • Maximum ambient temperature: +102°F
  • Maximum withstandable pressure: 118 psi (8 bar / 800 kPa)
  • Motor protection rating: IPX4
  • Insulation class: F
  • Installation: Horizontal or vertical fixed position
  • Power Supply: 230V 50-60Hz



Features

  • ESYBOX comprises a self-priming, multi-stage pump with electronic inverter management, pressure and flow sensors, adjustable, high-resolution LCD display and an integrated 0.5 gallon expansion tank. Can be installed either vertically or horizontally, in closed spaces without high level of air exchange. The accessories (esywall, esydock, esytwin, esytank) permit several installation possibilities.
  • The water-cooled motor, the protective and sound damping ABS hull, the anti-vibration feet and its electronics make this compact product very quiet (45dB under normal use). The wireless system enables the creation of other pressurization groups able to connect with other DAB devices (eg, esylink).



Advantages

  • esybox is, first of all, an integrated electronic system equipped with inverter technology; each component has been developed to give maximum performance with minimum effort, bringing innovation to the service of simplicity.
  • All this is enclosed inside a “case” with its typical Italian design.



Benefits

  • The new variable-speed electronics ensures constant pressure in relation to the flow rate. The systems with inverter technology make less noise compared to the traditional on/off systems because they regulate the motor rpm according to requirements of the system and is equipped with gradual start-up and switch off.
