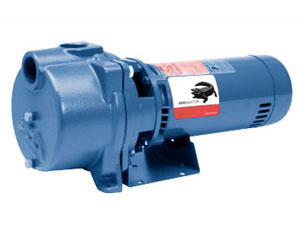

GT07 - 3/4 HP - 115 / 230 Volts - Single Phase Centrifugal Pump

GT07 - 3/4 HP - 115 / 230 Volts - Single Phase Centrifugal Pump

SKU: GT07
Regular price $798.00 $0.00 Unit price per


    FEATURES

    Self-Priming Design
    Once pump is primed, filled with water, it never needs priming again even if water level drops below the end of the suction pipe. Pumping resumes once the water level rises above the end of the suction pipe.

    Serviceable
    Back pullout design allows disassembly of pump for service without disturbing piping.Two compartment motor for easy access to motor wiring and replaceable components.

    DiffuserĀ (Guidevane)
    Bolt down diffuser provides positive alignment with impeller. Diffuser has stainless wear ring for extended performance in abrasive conditions. F.D.A. compliant, injection molded, food grade, glass filled Lexan for durability and abrasion resistance.

    Impeller
    F.D.A. compliant, glass filled Noryl. Corrosion and abrasion resistant.

    Corrosion Resistant
    Electro-coat paint process is applied inside and out, then baked on.

    Casing
    Cast iron construction. Four (4) bolt, back pull-out design. Tapped openings providedfor vacuum gauge and casing drain.

    Powered for Continuous Operation
    Pump ratings are within the motor manufacturer's recommended working limits. Can be operatedcontinuously without damage.

    Mechanical Seal
    Carbon/ceramic faces, BUNA elastomers. 300 series stainless steel metal parts. Pump design prevents the seal from running dry.

    SPECIFICATIONS

    Pump:
    • Pipe connections: 1 1/2 NPT suction 1 1/2 NPT discharge
    • Capacities: to 110 GPM at 5 foot suction lift.
    • Heads: to 128 feet.
    • Reprime capabilities: to 25 feet suction lift.
    • Maximum working pressure: 125 PSIG.
    • Maximum water temperature: 140_ F (60_ C).
    • Rotation: clockwise when viewed from motor end.
    Motor:
    • NEMA standard open drip proof.
    • 60 Hz, 3500 RPM.
    • Stainless steel shaft.
    • Single phase: Ɗ-1_ HP, 115/230 V; 2 and 3 HP, 230 V only. Built-in overload with automatic reset.
    • Three phase: 230/460 V. Overload protection must be provided in starter unit. Starter and heaters (3) must be ordered separately.
    • Optional TEFC motors are available.
