Goulds

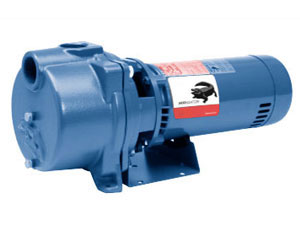

GT203 - 2 HP - 230 / 460 Volts - Three Phase Centrifugal Pump
GT203 - 2 HP - 230 / 460 Volts - Three Phase Centrifugal Pump
Regular price
$1,822.00 USD
Regular price
Sale price
$1,822.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
FEATURES
Self-Priming Design
Once pump is primed, filled with water, it never needs priming again even if water level drops below the end of the suction pipe. Pumping resumes once the water level rises above the end of the suction pipe.
Serviceable
Back pullout design allows disassembly of pump for service without disturbing piping.Two compartment motor for easy access to motor wiring and replaceable components.
Diffuser (Guidevane)
Bolt down diffuser provides positive alignment with impeller. Diffuser has stainless wear ring for extended performance in abrasive conditions. F.D.A. compliant, injection molded, food grade, glass filled Lexan® for durability and abrasion resistance.
Impeller
F.D.A. compliant, glass filled Noryl®. Corrosion and abrasion resistant.
Corrosion Resistant
Electro-coat paint process is applied inside and out, then baked on.
Casing
Cast iron construction. Four (4) bolt, back pull-out design. Tapped openings provided for vacuum gauge and casing drain.
Powered for Continuous Operation
Pump ratings are within the motor manufacturer's recommended working limits. Can be operated continuously without damage.
Mechanical Seal
Carbon/ceramic faces, BUNA elastomers. 300 series stainless steel metal parts. Pump design prevents the seal from running dry.
SPECIFICATIONS
Pump:
View full details
Self-Priming Design
Once pump is primed, filled with water, it never needs priming again even if water level drops below the end of the suction pipe. Pumping resumes once the water level rises above the end of the suction pipe.
Serviceable
Back pullout design allows disassembly of pump for service without disturbing piping.Two compartment motor for easy access to motor wiring and replaceable components.
Diffuser (Guidevane)
Bolt down diffuser provides positive alignment with impeller. Diffuser has stainless wear ring for extended performance in abrasive conditions. F.D.A. compliant, injection molded, food grade, glass filled Lexan® for durability and abrasion resistance.
Impeller
F.D.A. compliant, glass filled Noryl®. Corrosion and abrasion resistant.
Corrosion Resistant
Electro-coat paint process is applied inside and out, then baked on.
Casing
Cast iron construction. Four (4) bolt, back pull-out design. Tapped openings provided for vacuum gauge and casing drain.
Powered for Continuous Operation
Pump ratings are within the motor manufacturer's recommended working limits. Can be operated continuously without damage.
Mechanical Seal
Carbon/ceramic faces, BUNA elastomers. 300 series stainless steel metal parts. Pump design prevents the seal from running dry.
SPECIFICATIONS
Pump:
- Pipe connections: 1½" NPT suction 1½" NPT discharge
- Capacities: to 110 GPM at 5 foot suction lift.
- Heads: to 128 feet.
- Reprime capabilities: to 25 feet suction lift.
- Maximum working pressure: 125 PSIG.
- Maximum water temperature: 140° F (60° C).
- Rotation: clockwise when viewed from motor end.
- NEMA standard open drip proof.
- 60 Hz, 3500 RPM.
- Stainless steel shaft.
- Single phase: ¾-1½ HP, 115/230 V; 2 and 3 HP, 230 V only. Built-in overload with automatic reset.
- Three phase: 230/460 V. Overload protection must be provided in starter unit. Starter and heaters (3) must be ordered separately.
- Optional TEFC motors are available.
