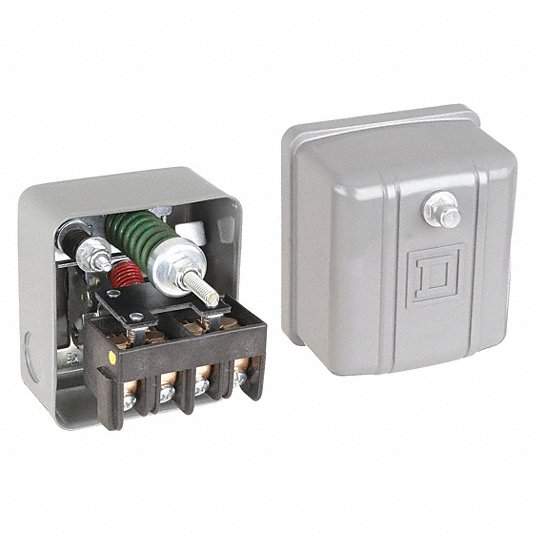

Heavy Duty Pressure Switch
Heavy Duty Pressure Switch
Square D

Heavy Duty Pressure Switch

SKU: 9013ghg2j30
Regular price $109.00 $0.00 Unit price per
Shipping calculated at checkout.

This pressure switch features an adjustable differential, an actuated diaphragm, and contacts designed to open with rising pressure. It is designed to control electrically driven air compressors and pumps.

Pressure Switch Application: Air Compressor and Water Pump
Manual Switch Action: None
Pressure Switch Port Type: (1) Port, 1/4 in FNPS
Pressure Switch Factory On/Off Setting: 80/100 psi
Pressure Switch Unloader: No
Pressure Switch Differential: 20 to 40 psi
Pressure Switch Range: 40 to 200 psi
Pressure Switch Electrical Contact Form: DPST
Pressure Switch Action: Standard
NEMA Rating: 1
Series: 9013GHG
HP @ 1 Phase - 120V: 2 hp
HP @ 1 Phase - 240V: 3 hp
HP @ 3 Phase - 240V: 5 hp
HP @ 3 Phase - 480V: 5 hp
Temp. Range: -22 Degrees to 257 Degrees F
Standards: ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
Special Features: Nitrile (Buna-N) Diaphragm
AC Contact Rating: 10A @ 575V
