Goulds

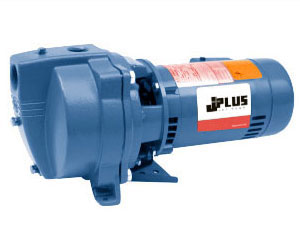

Goulds J15S Shallow Well Jet Pump – 1-1/2 HP, 115/230V

$1,833.00

Contact us for shipping details

Standard limited warranty—confirm eligibility

Product highlights

Goulds J15S: 1-1/2 HP shallow well jet pump with 115/230V motor.

Built-in shallow well jet assembly with nozzle and venturi

Back pullout design helps service the pump without disturbing connected piping

1-1/4-inch suction, 1-inch discharge; 30/50 PSI factory switch.

Call or chat for our best price

Ask for better pricing and help matching the right jet pump to your installation.

Chat for Better Pricing & Pump Help Call for Our Best Price: (925) 934-4582

Send your existing model, pumping water level, piping arrangement, flow and electrical details.

Delivery and local pickup

Check shipping charges and delivery options at checkout. Call or chat to confirm current stock and timing.

Pickup: Tuesday–Friday, 9 AM–5 PM; Saturday, 10 AM–4 PM. Wait for your ready-for-pickup email before visiting.

1960 Mt Diablo Blvd, Walnut Creek, CA 94596

Questions or curbside pickup? Call 925-934-4582.

Shipping and pickup details · Return policy and conditions

Your local pump specialists

Local pickup
Ready-for-pickup email
Expert pump advice
Help before you order
Walnut Creek store
Serving the area since 1950
Delivery help
Call with timing questions
Shipping information View return policy

A good fit when…

  • Above-ground shallow well installation
  • 1-1/2 HP model matches your required operating point
  • Compatible 115/230V electrical supply and piping

Check before ordering

  • Pumping water level and total suction lift
  • Required flow at your discharge pressure
  • 30/50 PSI factory switch versus your system settings
  • Suction-line airtightness, valve condition and motor wiring

Built into this system

  • Built-in shallow well jet assembly with nozzle and venturi
  • Back pullout design helps service the pump without disturbing connected piping
  • Engineered composite impeller and diffuser with stainless wear ring
  • Pressure switch and tubing included with the basic pump unit

Plan your installation

  • Compatible suction and discharge piping
  • Foot/check valve and priming arrangement
  • Pressure tank and controls suited to your system
  • Electrical connections per the manufacturer's instructions

Compare your options

Goulds J15S Shallow Well Jet Pump – 1-1/2 HP, 115/230V

Goulds J15S Shallow Well Jet Pump – 1-1/2 HP, 115/230V

Currently viewing

$1,833.00

Specifications

Model: J15S

Series: JS+ shallow well jet pump

Motor: 1-1/2 HP, 115/230V, single phase, 60 Hz

Suction connection: 1-1/4-inch NPT

Discharge connection: 1-inch NPT

Factory pressure switch: 30/50 PSI

Flow at 5 ft suction lift and 40 PSI discharge pressure: 26.3 GPM

Flow at 15 ft suction lift and 40 PSI discharge pressure: 21.5 GPM

Select from the manufacturer's performance table at your actual suction lift and discharge pressure.

A.Y. McDonald 8315 E-Series Shallow Well Jet Pump – 1-1/2 HP, 115/230V

A.Y. McDonald 8315 E-Series Shallow Well Jet Pump – 1-1/2 HP, 115/230V

$1,383.00

Specifications

Model: 8315 | Manufacturer part number: 6156-128

Series: E-Series shallow well jet pump

Motor: 1-1/2 HP, 115/230V

Suction connection: 1-1/4-inch

Discharge connection: 1-inch

Factory pressure switch: 40/60 PSI

Flow at 5 ft suction lift and 40 PSI discharge pressure: 26.9 GPM

Flow at 15 ft suction lift and 40 PSI discharge pressure: 20.1 GPM

Select from the manufacturer's performance table at your actual suction lift and discharge pressure.

View product details
Goulds J10S Shallow Well Jet Pump – 1 HP, 115/230V

Goulds J10S Shallow Well Jet Pump – 1 HP, 115/230V

$1,421.00

Specifications

Model: J10S

Series: JS+ shallow well jet pump

Motor: 1 HP, 115/230V, single phase, 60 Hz

Suction connection: 1-1/4-inch NPT

Discharge connection: 1-inch NPT

Factory pressure switch: 30/50 PSI

Flow at 5 ft suction lift and 40 PSI discharge pressure: 24.4 GPM

Flow at 15 ft suction lift and 40 PSI discharge pressure: 19.5 GPM

Select from the manufacturer's performance table at your actual suction lift and discharge pressure.

View product details

Compare specifications and pump curves before choosing. Maximum flow is not flow at maximum pressure.

Need help choosing?

Ask us about Goulds J15S Shallow Well Jet Pump – 1-1/2 HP, 115/230V.

Chat with a pump specialist

Choose with confidence

Choose the 1-1/2 HP J15S when its performance curve matches your home's water demand and suction lift. It offers the highest horsepower of the four Goulds JS+ models in this collection.

Compare J15S at your pumping water level and discharge pressure before ordering. Call or chat for replacement help and better pricing.

Start with your pumping water level

Measure the water level while pumping, then compare the manufacturer's table at your required pressure. Share your current model, pipe sizes and electrical supply so we can help check the replacement.

Plan the complete system

Check the pressure tank, pressure switch, suction line and foot/check valve. Prime the pump as instructed before operation. Call or chat for compatible accessories and better pricing.

Real people. A real pump shop.

Get help from a local pump shop serving Contra Costa County since 1950.

1960 Mt Diablo Blvd, Walnut Creek, CA 94596
Call 925-934-4582 for pump selection and pickup availability.

Full product description

Need a dependable pump for a shallow-well water system? The Goulds J15S 1-1/2 HP shallow well jet pump is designed to move water from a suitable shallow well to a home or pressure-tank system. Its compact, service-friendly design makes it a practical choice for new installations and compatible replacements.

Why choose this pump?

  • Integrated shallow-well adapter eliminates a separate adapter.
  • Back-pullout design helps simplify servicing without disturbing connected piping.
  • Corrosion- and abrasion-resistant impeller and diffuser components.
  • Corrosion-resistant coated pump housing.
  • Motor designed for continuous operation within rated limits.

Specifications

  • Model: J15S
  • Horsepower: 1-1/2 HP
  • Voltage: 115/230V (verify wiring configuration before installation)
  • Application: Shallow well jet pump

Choosing the right jet pump

Check your well's water level, suction lift, required flow and pressure, piping connections, existing pump model, and available electrical supply. Horsepower alone does not determine whether a pump will work for your installation.

Need help selecting a replacement?

Electric Motor Service in Walnut Creek can help you compare pump models and compatibility. Call (925) 934-4582 or use live chat to ask about your application and pricing.

Frequently asked questions

Can I replace my current pump with this model?
Possibly. Confirm the well depth, performance requirements, plumbing connections, and electrical supply before ordering.

Can I use this for a deep well?
This listing is intended for shallow-well jet-pump applications; contact us if you are unsure of your well setup.

Model: J15S

Series: JS+ shallow well jet pump

Motor: 1-1/2 HP, 115/230V, single phase, 60 Hz

Suction connection: 1-1/4-inch NPT

Discharge connection: 1-inch NPT

Factory pressure switch: 30/50 PSI

Flow at 5 ft suction lift and 40 PSI discharge pressure: 26.3 GPM

Flow at 15 ft suction lift and 40 PSI discharge pressure: 21.5 GPM

Select from the manufacturer's performance table at your actual suction lift and discharge pressure.
