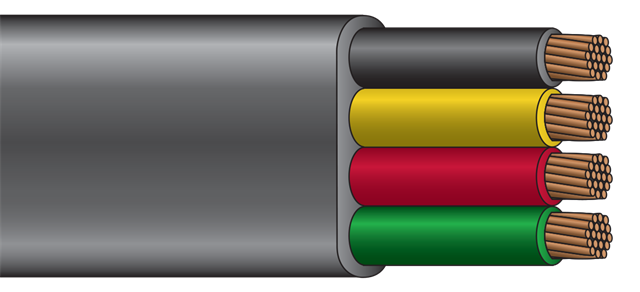

Submersible Pump Cable - Flat Jacket - 4 Wire - 12 Gauge

Submersible Pump Cable - Flat Jacket - 4 Wire - 12 Gauge

SKU: PFB12/3GG
Regular price $3.00 $0.00 Unit price per
Shipping calculated at checkout.

Description

Stranded copper conductors, insulated with color coded PVC (type THW), configured flat and parallel with green insulated ground, and overall PVC jacket applied directly over the conductors with a non-penetrating web.

Application

Suitable for use within the well casing to supply power to the submersible pump and where extra mechanical protection and flexibility during installation and operation are required.

Standards

UL 83
Temperature Rated at 75°C Wet/Dry
Color Code: Black, Red, Yellow, Green (ground)
Sunlight Resistant, Gasoline and Oil Resistant
Weather, Ozone, and Sunlight Resistant Jacket
RoHS Compliant
