DAB E.SYTWIN Mini Booster Pump Bundle – 2 Mini 3 Pumps + Dock

$3,189.00

Free UPS Ground

2-year limited manufacturer warranty

Product highlights

A twin-pump package containing two E.SYBOX Mini 3 pumps and one EsyTwin Mini dock. Plan it around your required flow and duty arrangement.

Get the right pump—and our best deal

Chat for sizing help and 15% off your first purchase of $99 or more.

Chat for My Discount & Sizing Help Prefer to call? 925-934-4582

Tell us your water source, current pressure and how many fixtures run together.

Delivery and local pickup

Shipping service: Free UPS Ground

Free shipping on orders over $99. This item will ship with Signature Requirement due to its value. We will give you a call before we ship your item to confirm your address.

Pickup: Tuesday–Friday, 9 AM–5 PM; Saturday, 10 AM–4 PM. Wait for your ready-for-pickup email before visiting.

1960 Mt Diablo Blvd, Walnut Creek, CA 94596

Questions or curbside pickup? Call 925-934-4582.

Shipping and pickup details · Return policy and conditions

Your local pump specialists

Local pickup
Ready-for-pickup email
Expert pump advice
Help before you order
Walnut Creek store
Serving the area since 1950
Delivery help
Call with timing questions
Shipping information View return policy

A good fit when…

  • A system designed around two E.SYBOX Mini 3 pumps
  • An installation requiring a twin-pump arrangement

Check before ordering

  • Size using the system's pump curves and operating pressure
  • Confirm the supplied pump versions and electrical requirements

Built into this system

  • Two E.SYBOX Mini 3 pumps
  • One EsyTwin Mini dock

Plan your installation

  • Plan inlet and outlet piping, isolation valves and electrical connections
  • Commission the pumps and duty arrangement following DAB instructions

Compare your options

DAB E.SYTWIN Mini Booster Pump Bundle – 2 Mini 3 Pumps + Dock

DAB E.SYTWIN Mini Booster Pump Bundle – 2 Mini 3 Pumps + Dock

Currently viewing

$3,189.00

Specifications

Package: two E.SYBOX Mini 3 pumps and one EsyTwin Mini dock

Match electrical requirements to the supplied pump nameplates

Combined performance depends on pump curves and the configured duty arrangement

DAB E.SYBOX Mini 3 Constant Pressure Booster Pump – 115V/230V

DAB E.SYBOX Mini 3 Constant Pressure Booster Pump – 115V/230V

$1,547.00

Specifications

Operating range:

capacity up to 22 gpm (80L/min); head up to 183 ft (56 m) - (80 psi)

Liquid quality requirements:

clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallized and chemically neutral.


Liquid temperature range:

from 32°F to +95°F (0°C to +35°C) for domestic use
for other use: from 32°F to +104°F (0°C to +40°C)


Maximum suction depth: 26 ft (8 m)
Maximum ambient temperature: +122°F (+50°C)
Maximum pressure: 108 psi (7.5 Bar)
Maximum settable pressure: 79 psi (5.5 Bar)
Motor protection rating: IPX4
Insulation class: F
Installation: Horizontal or vertical fixed position

Approvals:

CSA certification to CSA Standard C22.2 No 108- 14 Liquid Pumps

UL Standard 778- 5th Edition- Motor operated water pumps

NSF/ANSI 61 - 2014a - Drinking Water System Components – Health Effects

NSF/ANSI 372 - 2011 - Drinking Water System Components – Lead Content

View product details

Compare specifications and pump curves before choosing. Maximum flow is not flow at maximum pressure.

Need help choosing?

Ask us about DAB E.SYTWIN Mini Booster Pump Bundle – 2 Mini 3 Pumps + Dock.

Chat with a pump specialist

Choose with confidence

Choose the Mini bundle when your system design calls for two Mini 3 pumps. Have an installer confirm combined performance, controls and electrical requirements for the intended duty.

Two pumps, one matched dock

Choose the Mini bundle when your system design calls for two Mini 3 pumps. Have an installer confirm combined performance, controls and electrical requirements for the intended duty.

Real people. A real pump shop.

Get help from a local pump shop serving Contra Costa County since 1950.

1960 Mt Diablo Blvd, Walnut Creek, CA 94596
Call 925-934-4582 for pump selection and pickup availability.

Full product description

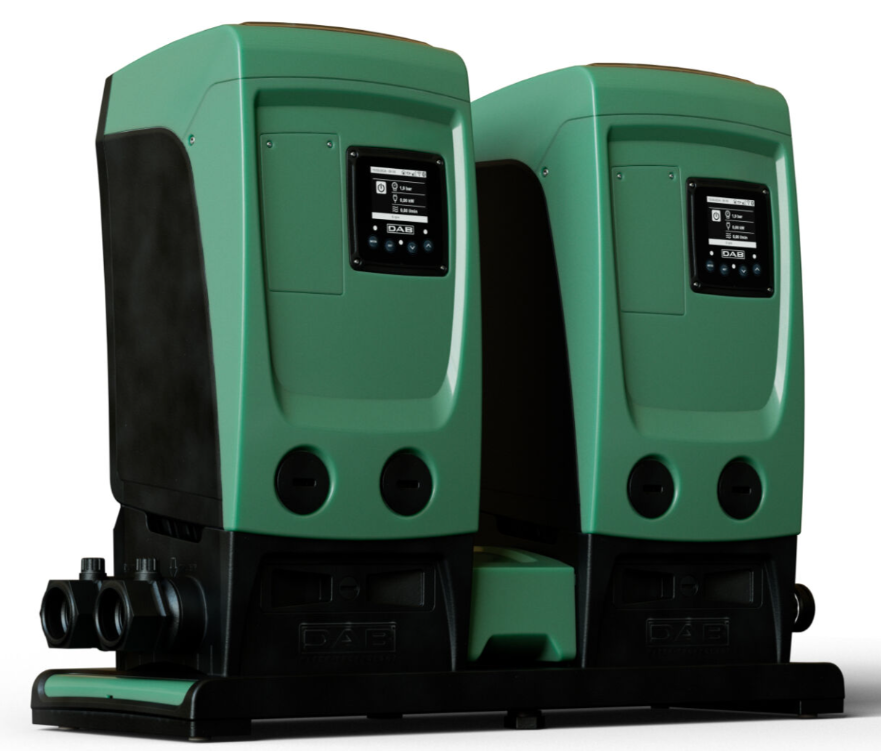

Need more flow capacity or a standby pump option? This DAB E.SYTWIN Mini bundle pairs two E.SYBOX Mini 3 pumps with one E.SYTWIN Mini dock for a compact twin-pump pressure-boosting system. Ask us to confirm the operating setup, required flow and pressure, and electrical requirements for your installation.

What is included in this bundle?

The listing includes two E.SYBOX Mini 3 pumps and one EsyTwin Mini dock.

Does two pumps mean twice the pressure?

Do not assume pressure doubles. Combined performance depends on the arrangement, pump curves and controls. Ask us to help check flow at your target pressure.

Package: two E.SYBOX Mini 3 pumps and one EsyTwin Mini dock

Match electrical requirements to the supplied pump nameplates

Combined performance depends on pump curves and the configured duty arrangement
