DAB E.SYTWIN Booster Pump Bundle – 2 E.SYBOX 230V Pumps + Dock

$6,689.00

Free UPS Ground

2-year limited manufacturer warranty

Product highlights

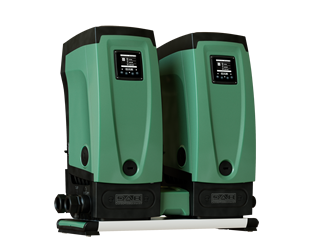

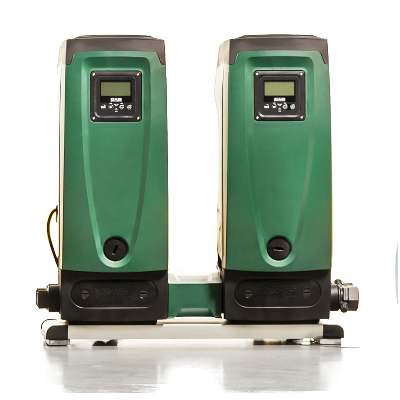

A full-size twin-pump package containing two E.SYBOX 230V pumps and one EsyTwin dock for a matched pressure-boosting installation.

Get the right pump—and our best deal

Chat for sizing help and 15% off your first purchase of $99 or more.

Chat for My Discount & Sizing Help Prefer to call? 925-934-4582

Tell us your water source, current pressure and how many fixtures run together.

Delivery and local pickup

Shipping service: Free UPS Ground

Free shipping on orders over $99. This item will ship with Signature Requirement due to its value. We will give you a call before we ship your item to confirm your address.

Pickup: Tuesday–Friday, 9 AM–5 PM; Saturday, 10 AM–4 PM. Wait for your ready-for-pickup email before visiting.

1960 Mt Diablo Blvd, Walnut Creek, CA 94596

Questions or curbside pickup? Call 925-934-4582.

Shipping and pickup details · Return policy and conditions

Your local pump specialists

Local pickup
Ready-for-pickup email
Expert pump advice
Help before you order
Walnut Creek store
Serving the area since 1950
Delivery help
Call with timing questions
Shipping information View return policy

A good fit when…

  • A system designed around two full-size E.SYBOX pumps
  • A matched twin-pump package rather than a dock-only purchase

Check before ordering

  • Confirm a suitable 230V electrical installation
  • Check system curves, inlet conditions and simultaneous demand

Built into this system

  • Two E.SYBOX 230V pumps
  • One EsyTwin dock

Plan your installation

  • Plan suitable fittings, isolation valves and electrical connections
  • Commission the twin-pump controls and duty arrangement following DAB instructions

Compare your options

DAB E.SYTWIN Booster Pump Bundle – 2 E.SYBOX 230V Pumps + Dock

DAB E.SYTWIN Booster Pump Bundle – 2 E.SYBOX 230V Pumps + Dock

Currently viewing

$6,689.00

Specifications

Package: two E.SYBOX 230V pumps and one EsyTwin dock

Pump voltage: 230V

Combined performance depends on pump curves and the configured duty arrangement

DAB E.SYBOX Constant Pressure Booster Pump – 230V

DAB E.SYBOX Constant Pressure Booster Pump – 230V

$3,100.00

Specifications
  • Operating range: capacity up to 32 gpm; head up to 210 ft.
  • Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, un-crystallized and chemically neutral.
  • Liquid temperature range: from 32°F to +95°F for domestic use or from 32°F to +104°C for other uses
  • Maximum suction depth: 26 ft
  • Maximum ambient temperature: +102°F
  • Maximum withstandable pressure: 118 psi (8 bar / 800 kPa)
  • Motor protection rating: IPX4
  • Insulation class: F
  • Installation: Horizontal or vertical fixed position
  • Power Supply: 230v50-60Hz
View product details

Compare specifications and pump curves before choosing. Maximum flow is not flow at maximum pressure.

Need help choosing?

Ask us about DAB E.SYTWIN Booster Pump Bundle – 2 E.SYBOX 230V Pumps + Dock.

Chat with a pump specialist

Choose with confidence

Choose this bundle when your design calls for two E.SYBOX 230V pumps. Confirm combined flow at the required pressure and the planned duty arrangement before purchase.

A full-size twin-pump package

Choose this bundle when your design calls for two E.SYBOX 230V pumps. Confirm combined flow at the required pressure and the planned duty arrangement before purchase.

Real people. A real pump shop.

Get help from a local pump shop serving Contra Costa County since 1950.

1960 Mt Diablo Blvd, Walnut Creek, CA 94596
Call 925-934-4582 for pump selection and pickup availability.

Full product description

Need a twin-pump system for greater water demand or a standby pump option? This DAB E.SYTWIN bundle combines two E.SYBOX 230V variable-speed booster pumps with one E.SYTWIN dock. Ask us to match the system to your required flow and pressure and confirm the electrical and plumbing requirements.

What is included?

The listing includes two E.SYBOX 230V pumps and one EsyTwin dock.

How does it differ from the Mini bundle?

This bundle uses full-size E.SYBOX 230V pumps and the full-size dock. The Mini bundle uses two Mini 3 pumps and an EsyTwin Mini dock. Choose using the required system performance and electrical supply.

Package: two E.SYBOX 230V pumps and one EsyTwin dock

Pump voltage: 230V

Combined performance depends on pump curves and the configured duty arrangement
